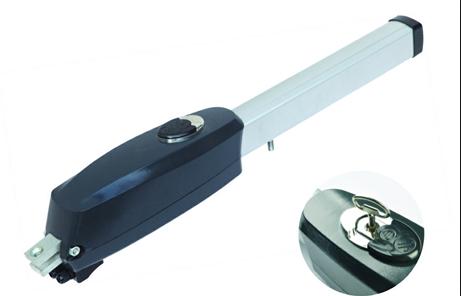

swing gate operator

Build Your Online Product Catalogs?




Description
Product Name: swing gate operator
Supply Ability:
Specifications ZK1800/ZK300DC/ZK300DC-1
Price Term:
Port of loading:
Minimum Order
Unit Price:
You may also be interested in: door opener, gate operator, swing gate opener,

ZK300DC
Main features
&|61548; The gate operator is intended for use with vehicular swing gate.
&|61548; DC24V motor with storage battery keeps working about 10 cycles after power disruption.
&|61548; Die-cast aluminum housing guarantees a long useful life, sturdy and durable.
&|61548; Water-proof design.
&|61548; Emergency release key in case of power failure.
&|61548; An electric lock is provided to stop the door at the proper position.
&|61548; Adjustable mounting bracket.
&|61548; Wiring terminals for infrared photocells and alarm lamp.
&|61548; Connecting with solar panel is available.
&|61548; For your safety, the gate operator will stop if it encounters an obstruction during opening and closing, 0-24 level auto-stop force adjustable.
&|61548; It also can be used as Linear Actuator, max. travel 330mm.
&|61548; Comply with industry standard of the ministry of construction of the people 's republic of china Sliding & Swing gate opener.

Technical specification
Type ZK300DC
Power supply AC220(110%)V 50Hz
Motor voltage DC24V
Motor speed 2800 rpm
Rated force 1000 N
90&|61616; opening or closing time (one gate leaf) 20 s
Working angle of gate 90or105
Max. gate section weight 300 kg
Max. gate section width 3 m
Ambient temperature -20oC+50oC
Cycles per hour 15


ZK300DC-1
Main features:
&|61548; The gate operator is intended for use with vehicular swing gate.
&|61548; DC motor with storage battery keeps working about 10 cycles after power disruption.
&|61548; Die-cast aluminum housing guarantees a long useful life, sturdy and durable.
&|61548; Water-proof design.
&|61548; Emergency release key in case of power failure.
&|61548; An electric lock is provided to stop the door at the proper position.
&|61548; Adjustable mounting bracket.
&|61548; Wiring terminals for infrared photocells and alarm lamp.
&|61548; Connecting with solar panel is available.
&|61548; For your safety, the gate operator will stop if it encounters an obstruction during opening and clos
